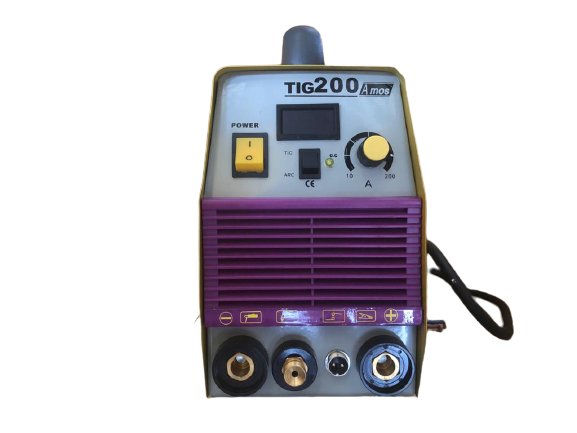

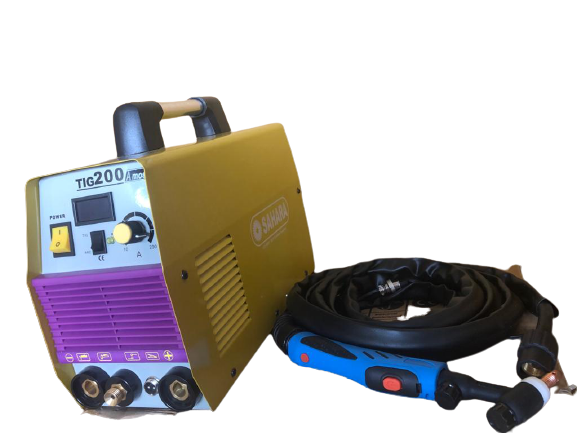

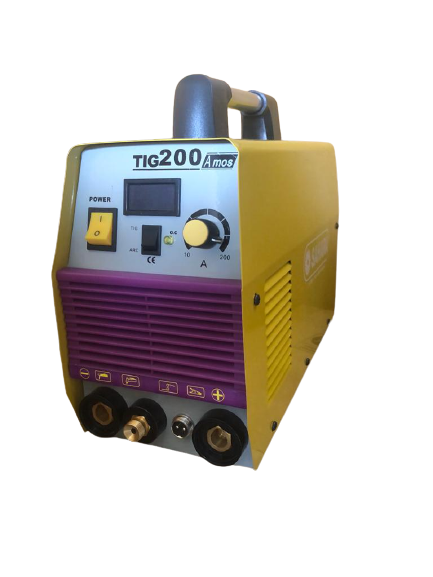

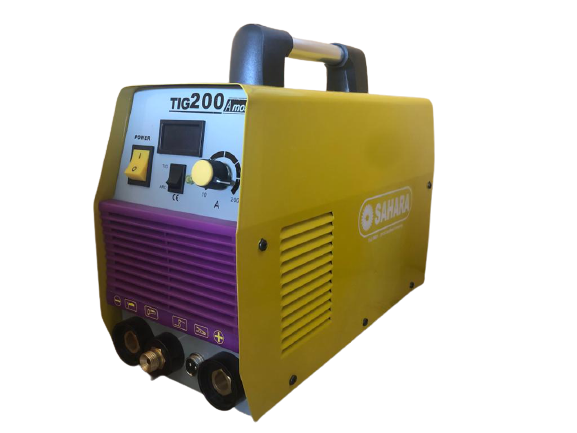

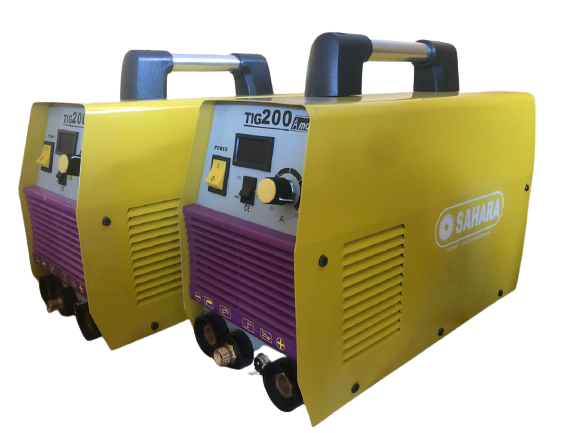

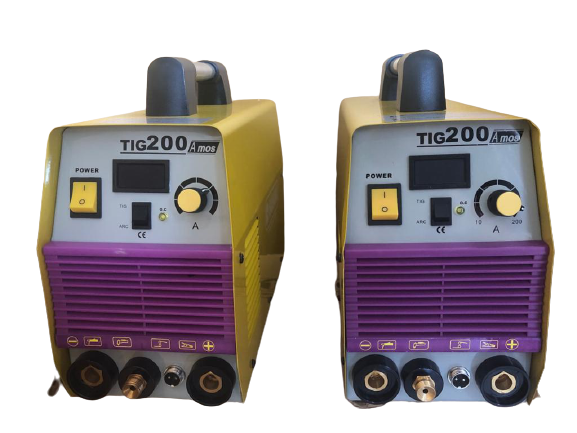

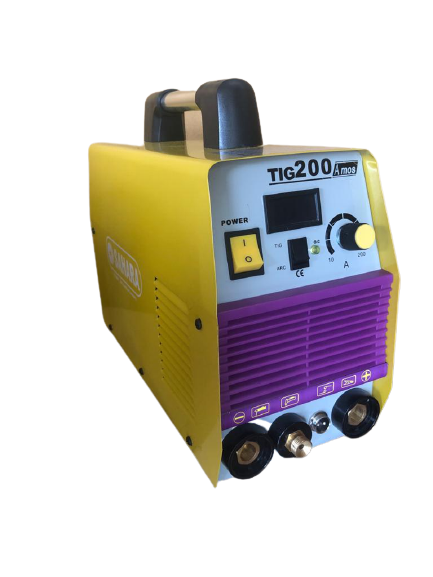

TiG Welding Machine

TiG Welding Machine


particulars invertor tig series (plus + AC/DC)
Parameter Model TiG 250p AC/DC
Input voltage (v) AC 220V ±15%
Phase 1
Frequency (Hz) 50/60
Rated input current (A) TIG : 38.9 MMA : 43.5
No-load voltage(V) 56
Output current range (A) TIG : 5-250 MMA : 3-200
Duty cycle (%) 60
Efficiency (%) 80
Power factor 0.73
Insulaton grade F
Housing protection geade IP21
Net weight (Kg) approx 19.250

  1. Nonferrous metal items assembly
  2. Nonferrous metal items manufacturing
  3. Aluminum alloy & body building equipment manufacturing
  4. Special Container and pipe construction
  5. Bicycle Manufacturing
